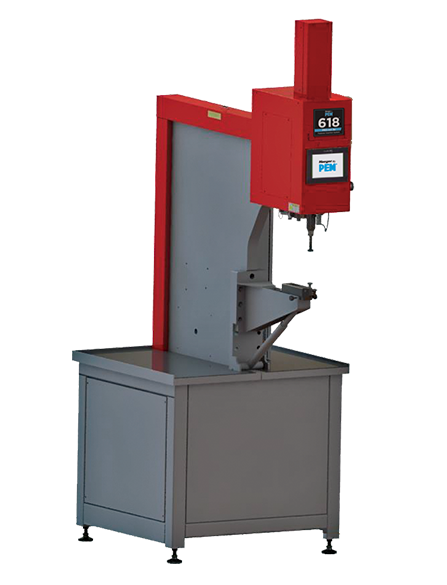

618™ PRO-AA™

The 618 PRO-AA features 6 tons (53 kN) of ram force, a throat depth of 18” (450 mm), and an adjustable lower arm allowing for maximum flexibility on unique and difficult sheet metal parts. You can also count on the reliability and energy efficiency of a fully hydraulic machine that offers our patented safety system, tooling protection system, and batch counter.

Specifications
Fastener Range #2-56 to 1/2″ (M2 to M12)
Force Range Adjustable 400 to 12,000 lbs. (1.8 to 53.4 kN)
Drive System Type Hydraulic
Insertions per Hour Up to 1,400
Control System PLC Control
Auto-Feed N/A
Batch Counter Standard
Fastener Database N/A
Insertion Graphics No
Fastener Length Detection No
Positive Stop N/A
Screen Size 7″
Robot Ready N/A
Remote Connection N/A
Repeatability/td> +/- 2% of force setting
Throat Depth 18″ (450 mm)
Stroke Length 0 to 8.0″ (0 to 200 mm)
Up Travel % 10-100%
Electrical Requirements 3 Phase Low 9 A 208-240 V or High 3.7 A 380-480 V
Air Requirements 90 to 100 PSI (6 to 7 BAR) 1/2″ (12mm) dia. minimum line flow
Oil Reservoir Capacity 10 gallons (39 liters)
Weight 1,175 lbs (533 kg)
Footprint 51″ x 32″ x 90″ (1295mm x 813mm x 2286mm)

MANUAL FORCE SETTING

Using dial to adjust force while holding ram down position you can adjust the force setting to set the proper installation force for your application.

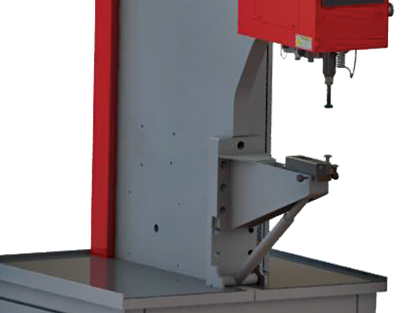

ADJUSTABLE LOWER TOOL ARM

Adjustable lower tool arm with removable support for additional clearance at lower forces.

WHAT TOOLING FITS THE
618 Pro-AA?

Connect to the tooling wizard
