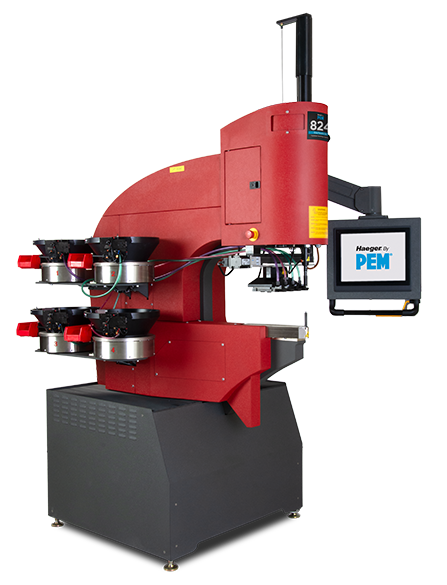

824™ OneTouch™ 5e
Programming is simpler and faster thanks to InsertionLogic™ and it’s database of PEM hardware. Insertion Graphics® allows for step by step operator instructions to be viewed from machines HMI. 4 independent tool changers and integrated statistic process controls achieve the highest level of productivity and quality.
Specifications | |
---|---|
Fastener Range | #2-56 to 1/2″ (M2 to M12) |
Force Range | Adjustable 800 lbs to 16,000 lbs (3.6-72 kN) |
Drive System Type | Hydraulic |
Insertions per Hour | Up to 1,400 |
Control System | Insertion Logic |
Auto-Feed | Standard |
Batch Counter | Standard |
Fastener Database | Standard |
Insertion Graphics | Standard |
Fastener Length Detection | Standard |
Positive Stop | Standard |
Screen Size | 15″ |
Robot Ready | Optional |
Remote Connection | Standard |
Repeatability; | +/- 2% of force setting |
Throat Depth | 24″ (610 mm) |
Stroke Length | 0 to 8.5″ (0 to 220 mm) |
Up Travel % | 100% – Return to Shuttle |
Electrical Requirements | 3 Phase Low 16 A 208-240 V or High 9.6 A 380-480 V |
Air Requirements | 90 to 100 PSI (6 to 7 BAR) 1/2″ (12mm) dia. minimum line flow |
Oil Reservoir Capacity | 22 gallons (83 liters) |
Weight | 3,200 lbs (1,452 kg) |
Footprint | 64″L x 44″W x 99″H (1626 mm x 1118 mm x 2515 mm) |

FOUR-STATION AUTOMATION
Four-station automation of both lower and upper tool changers will boost your productivity.
STREAMLINED TOOLING SETUP
Insertion Logic is loaded with an extensive database of PEM fastener and Haeger tooling allowing for rapid setup of new jobs and recall of existing jobs.
