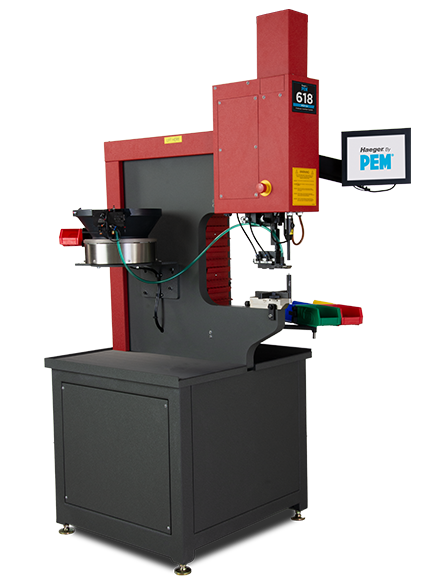

618™ MSP 5e
The 618 MSP 5e features 6 tons (53 kN) of ram force, a throat depth of 18″ (450 mm) plus an adjustable ram retract position. You can also count on the reliability and energy efficiency of a fully hydraulic machine that also offers our patented safety system, tooling protection system, and batch counter.
| Specifications | |
|---|---|
| Fastener Range | #2-56 to 1/2″ (M8 stud, M12 nut) |
| Force Range | Adjustable 600 lbs to 12,000 lbs (2.6-53 kN) |
| Drive System Type | Hydraulic |
| Insertions per Hour | Up to 1,400 |
| Control System | Insertion Logic |
| Auto-Feed | Optional |
| Batch Counter | Standard |
| Fastener Database | Standard |
| Insertion Graphics | No |
| Fastener Length Detection | No |
| Positive Stop | N/A |
| Screen Size | 10″ |
| Robot Ready | Optional |
| Remote Connection | Standard |
| Repeatability | +/- 2% of force setting |
| Throat Depth | 18″ (450 mm) |
| Stroke Length | 0 to 8.0″ (0 to 200 mm) |
| Up Travel % | 10-100% |
| Electrical Requirements | 3 Phase Low 9 A 208-240 V or High 3.7 A 380-480 V |
| Air Requirements | 90 to 100 PSI (6 to 7 BAR) 1/2″ (12mm) dia. minimum line flow |
| Oil Reservoir Capacity | 10 gallons (39 liters) |
| Weight | 1,600 lbs (726 kg) |
| Footprint | 45″L x 34″W x 84″H (1092 mm x 864 mm x 2134 mm) |
IMPROVE EFFICENCY WITH MAS-350
Haeger standard MAS-350 auto-feed system supports the range of PEM standard hardware with a simple swap of modules between hardware types.
MULTI-SHUTTLE TOOLING PLATFORM
The Multi-Shuttle Platform provides universal quick and easy tool changeover between nuts, studs and standoffs—enabling two-minute total tool changes without realignment.
