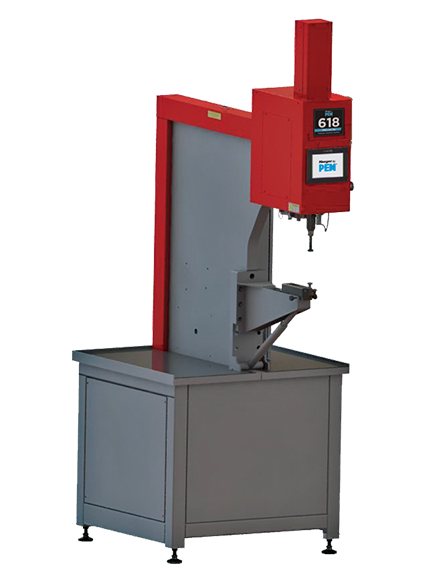

618™ PRO™
The 618 PRO features 6 tons (53 kN) of ram force, a throat depth of 18” (450 mm), and an adjustable lower arm allowing for maximum flexibility on unique and difficult sheet metal parts. You can also count on the reliability and energy efficiency of a fully hydraulic machine that offers our patented safety system, tooling protection system, and batch counter.
| Specifications | |
|---|---|
| Fastener Range | M2 to M12(#2-56 to 1/2″) |
| Force Range | Adjustable 1.8 to 53.4 kN (400 to 12,000 lbs) |
| Drive System Type | Hydraulic |
| Insertions per Hour | Up to 1,400 |
| Control System | PLC Control |
| Auto-Feed | N/A |
| Batch Counter | Standard |
| Fastener Database | N/A |
| Insertion Graphics | No |
| Fastener Length Detection | No |
| Positive Stop | N/A |
| Screen Size | 7″ |
| Robot Ready | N/A |
| Remote Connection | N/A |
| Repeatability/td> | +/- 2% of force setting |
| Throat Depth | 450 mm (18″) |
| Stroke Length | 0 to 200 mm (0 to 8.0″) |
| Up Travel % | 10-100% |
| Electrical Requirements | 3 Phase Low 9 A 208-240 V or High 3.7 A 380-480 V |
| Air Requirements | 90 to 100 PSI (6 to 7 BAR) 1/2″ (12mm) dia. minimum line flow |
| Oil Reservoir Capacity | 39 liters (10 gallons) |
| Weight | 533 kg (1,175 lbs) |
| Footprint | 1295mm x 813mm x 2286mm (51″ x 32″ x 90″) |

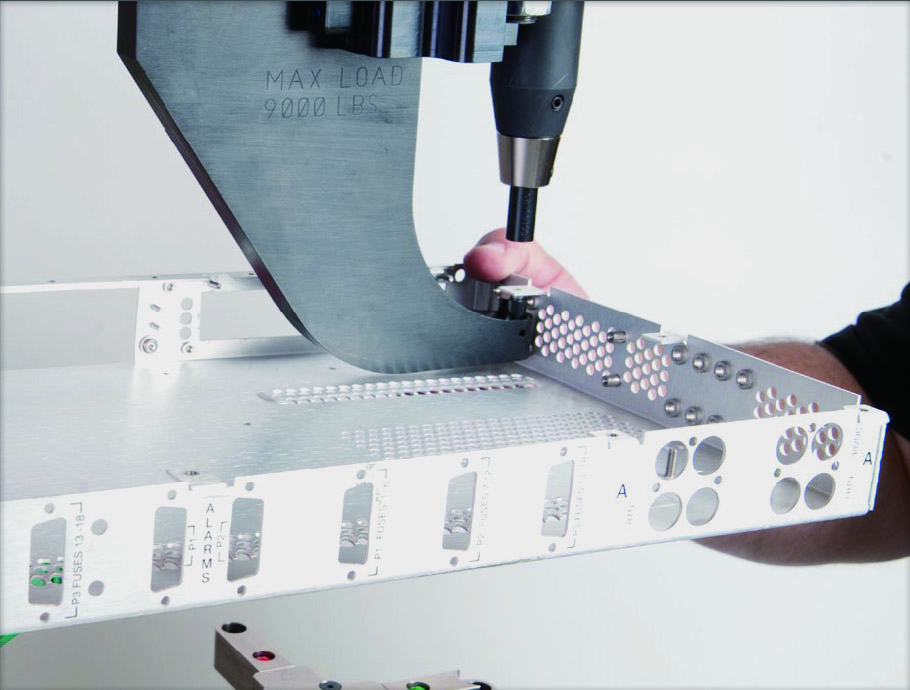

MANUAL TOOLING J-FRAME
Manual tooling J-Frame is used for small boxes and short reverse flanges.
